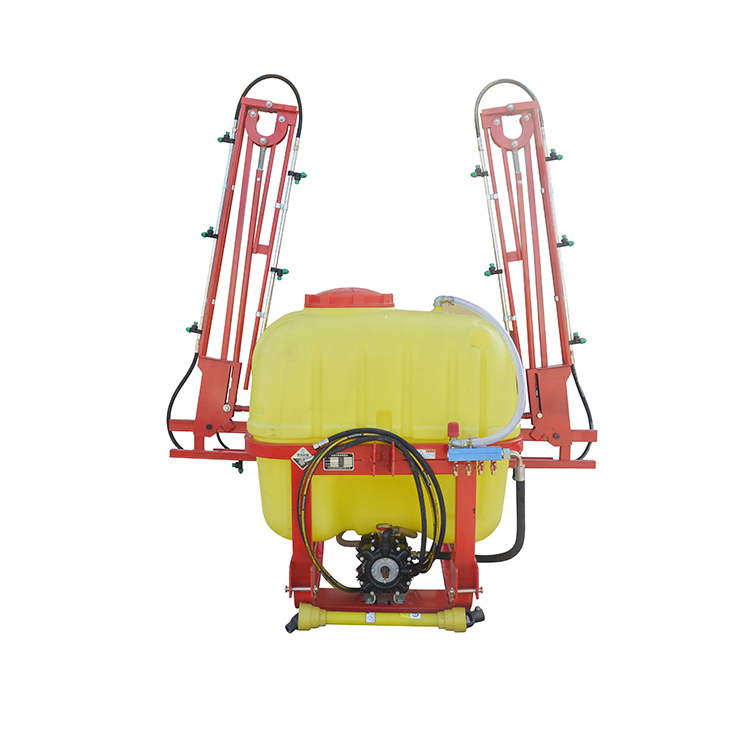

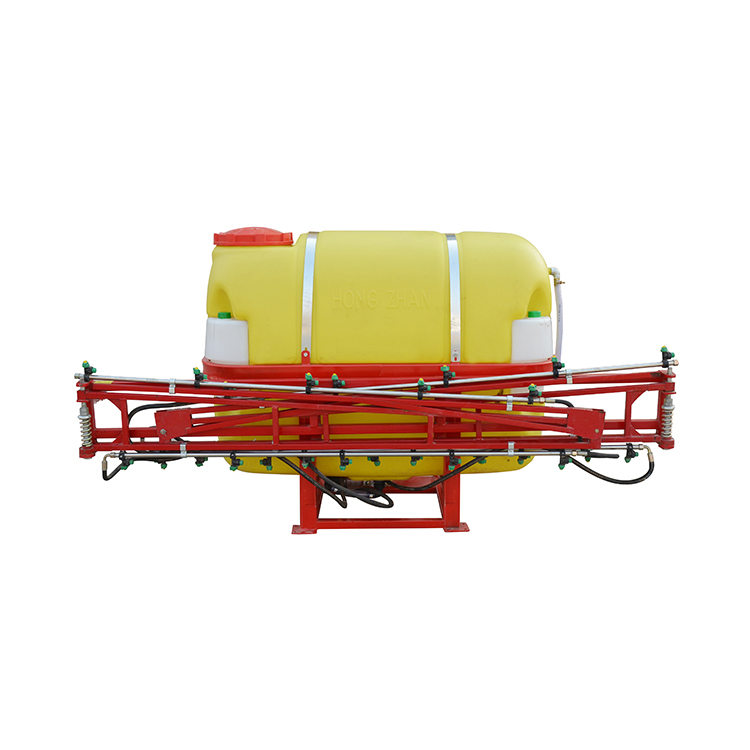

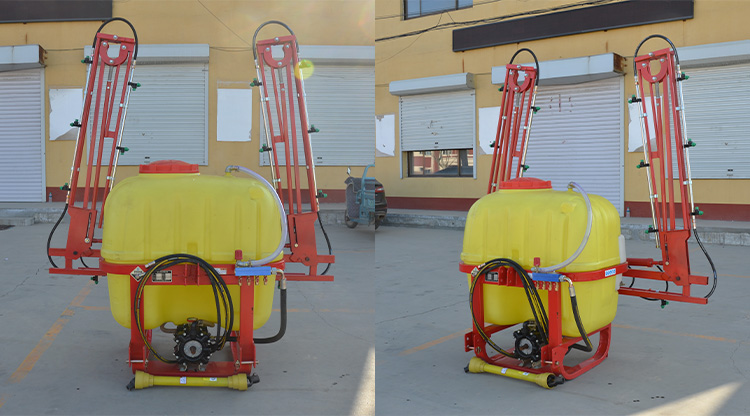

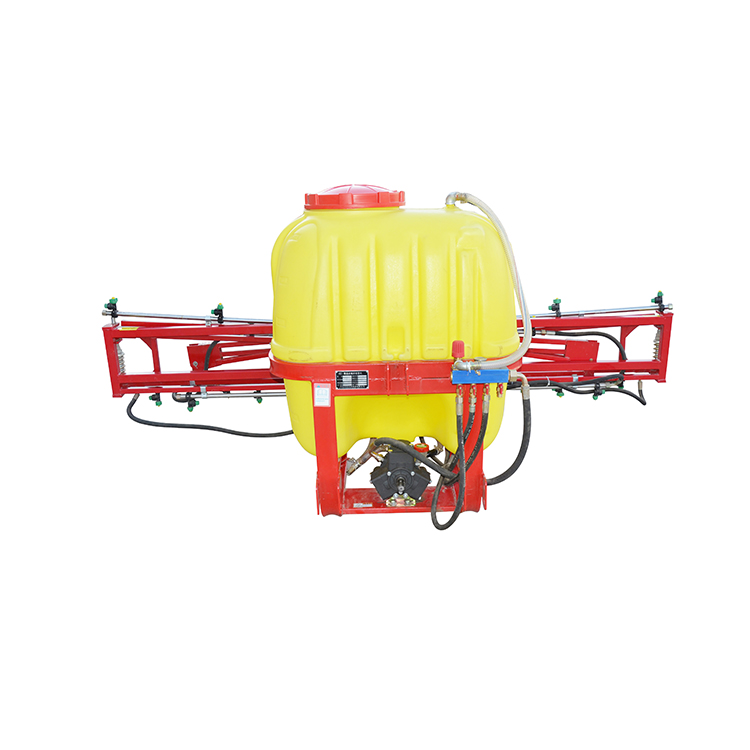

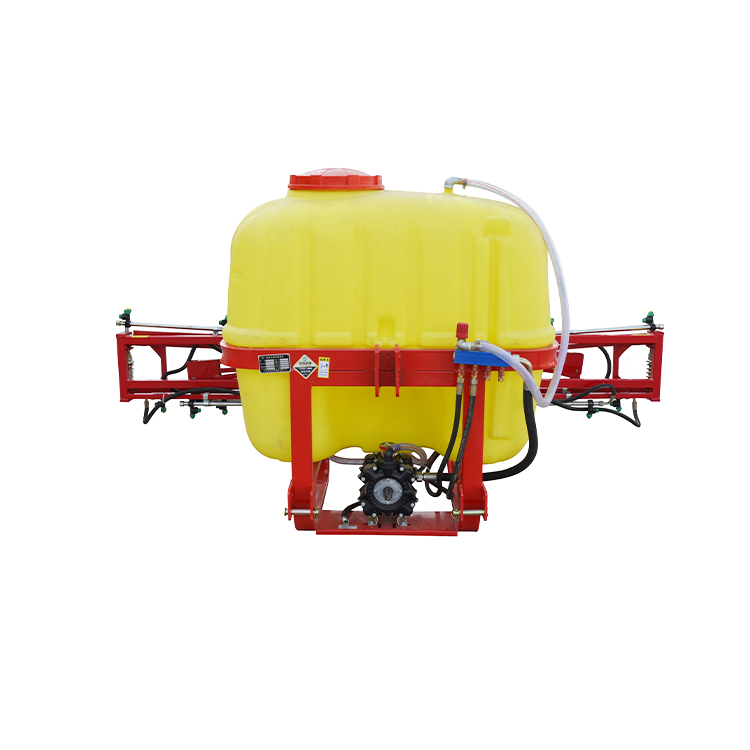

PTO Driven Boom Sprayer

The four-wheel tractor pto driven boom sprayer adopts a 600L large-capacity medicine tank, a 12-meter boom, a wide spray width and high production efficiency. The pipelines of the spray machine are made of special anti-corrosion materials, which have good corrosion resistance.

The liquid pump adopts a 3-cylinder diaphragm pump, which features stable working pressure and uniform spray. The height of the spray rod is adjustable. The layout of the distribution valve is conducive to the operation of the tractor driver. The  pto driven boom sprayer components adopt anti-drip nozzles to prevent the dripping and leakage of residual liquid medicine in the pipeline.

This pto driven boom sprayer is flexible to use and easy to operate. It is suitable for the prevention and control of diseases and pests of various early-field crops, as well as the spraying of foliar fertilizers and herbicides.

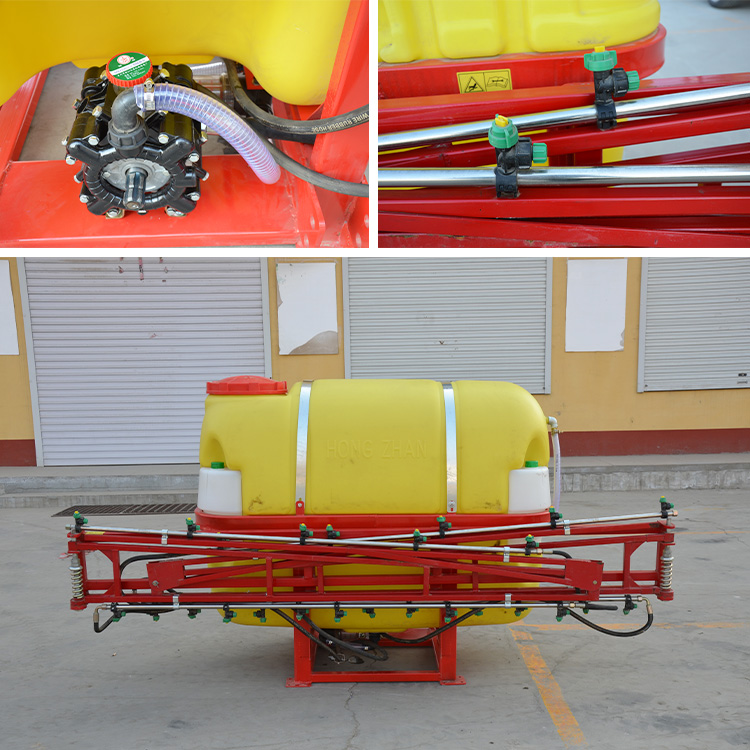

Detail display

● Thickened hose, long service life and not easy to be damaged

● The boom reinforcement design and thoughtful usage design meet a variety of needs

● The thickened barrel body design and thickened barrel skin provide excellent pressure resistance

What are the benefits of using a boom sprayer?

The pto driven boom sprayer is attached to the tractor via a three-point suspension system and can deliver precise and effective pesticides, herbicides and fertilizers. By using hanging sprayers, farmers can increase their yield potential and reduce their overall input costs. Pto driven boom sprayer is not only easy to operate, but also can effectively improve coverage, reduce drift, and improve operator safety.
